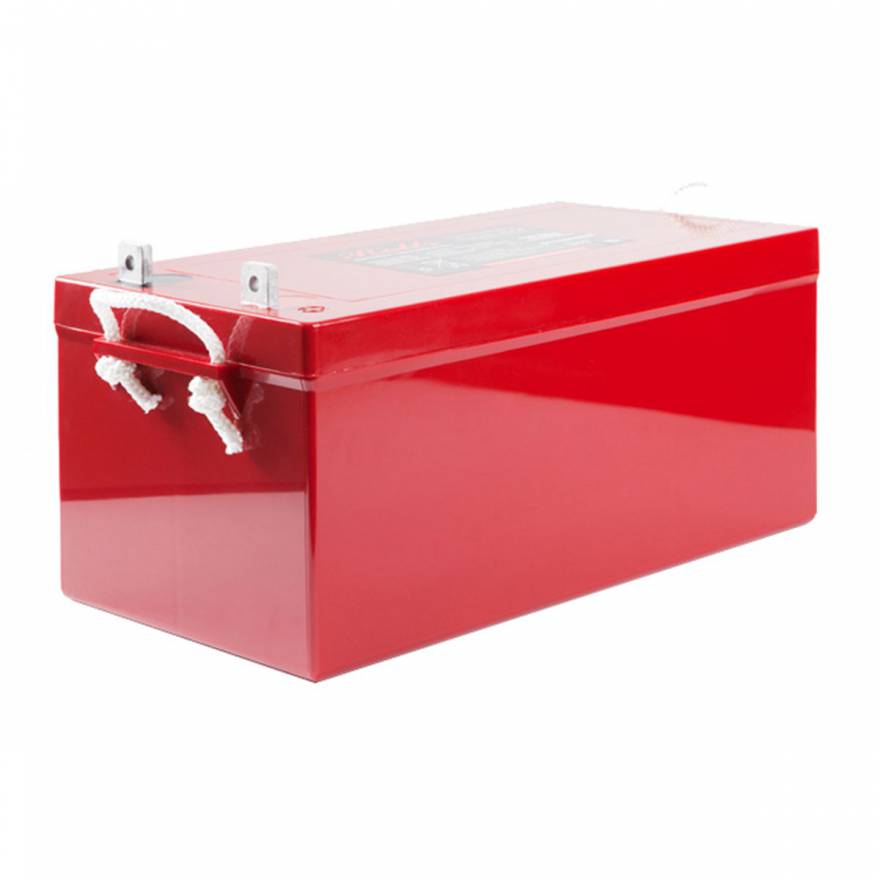

Rolls S12-290AGM-RE
Rolls is a Canadian Brand.
Full Product Spec Sheet: Click Here
| Specifications | |||
|---|---|---|---|
| Weight | 74 kg | 163 lbs | |
| Length | 522 mm | 20.55“ | |
| Width | 269 mm | 10.59“ | |
| Height Incl. Term. | 245 mm | 9.65“ | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Container | ABS | ||
|---|---|---|---|
| Cover | ABS | ||
| Handles | Rope | ||
| Series | AGM-S | Warranty | See Warranty Terms |
|---|---|---|---|
| Volts | 12 | Design | 8D |
| Cells | 6 | ||
| Terminal Type | L6 | ||
| Size & Thread | M8 | ||
| Charge | |
|---|---|
| Charge Voltage Range | 14.7V @ 25°C (77°F) |
| Float Voltage Range | 13.8V @ 25°C (77°F) |
| Recommended Charge Current | 50 A |
| Maximum Charge Current | 80 A |
| Self-Discharge Rate | Less than 2% per month at 25°C (77°F) |
| Internal Resistance | 1.8 mΩ |
| Capacity | |
|---|---|
| Cold Crank Amps (CCA) 0°F / -18°C | 1525 |
| Marine Crank Amps (MCA) 32°F / 0°C | 1830 |
| Reserve Capacity (RC @ 25A) | 578 Minutes |
| Reserve Capacity (RC @ 75A) | 145 Minutes |
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 290 AH | 2.9 A |
| @ 20 Hour Rate | 260 AH | 13 A |
| @ 10 Hour Rate | 234 AH | 23.4 A |
| @ 5 Hour Rate | 214 AH | 42.8 A |
| Cut Off Voltage | Constant Current Discharge | |||||
|---|---|---|---|---|---|---|
| VPC | 1 hr | 2 hr | 3 hr | 5 hr | 8 hr | 10 hr |
| 148 | 78.3 | 58.9 | 42.3 | 28.3 | 23.4 | |
