Rolls 6 FS L16-HC
Rolls is a Canadian Brand.
Full Product Spec Sheet: Click Here
| Specifications | |||
|---|---|---|---|
| Weight | 55.5 kg | 122.5 lbs | |
| Length | 311 mm | 12.25“ | |
| Width | 181 mm | 7.13“ | |
| Height Incl. Term. | 425.5 mm | 16.75“ | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Electrolyte Reserve | 57 mm | 2.25“ | |
|---|---|---|---|
| Container | High Density Polypropylene | ||
| Cover | High Density Polypropylene | ||
| Handles | Rope / Plastic Handle | ||
|
|||
| Series | FS | Warranty | 1 Year |
|---|---|---|---|
| Volts | 6 | Design | 903 |
| Cells | 3 | Plates/Cell | 17 |

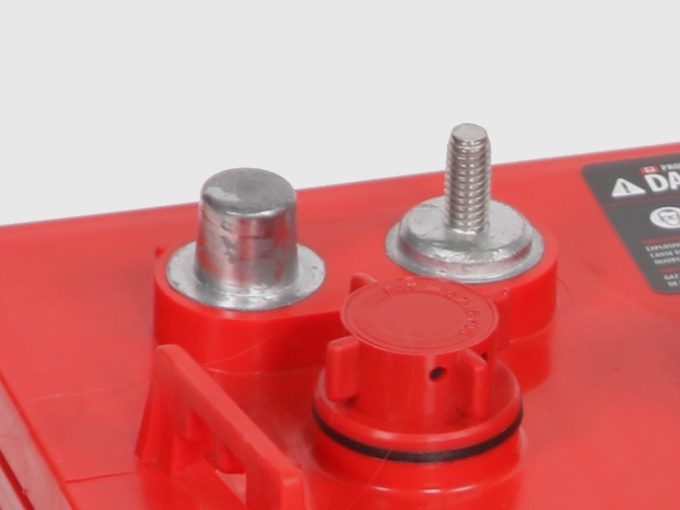

| Terminal Type | DT | ||
| Included Hardware | Stainless Steel K-Lock Nut | ||
| Size & Thread | 5/16″-18 | ||
| Charge | |
|---|---|
| Charge Voltage Range | 2.45-2.5 V/cell @ 25°C (77°F) |
| Float Voltage Range | 2.25 V/cell @ 25°C (77°F) |
| Recommended Charge Current | 50 A |
| Maximum Charge Current | 85 A |
| Self-Discharge Rate | 5%-10% per month at 25°C (77°F) |
| Capacity | |
|---|---|
| Cold Crank Amps (CCA) 0°F / -18°C | 1040 |
| Marine Crank Amps (MCA) 32°F / 0°C | 1299 |
| Reserve Capacity (RC @ 25A) | 828 Minutes |
| Reserve Capacity (RC @ 75A) | 218 Minutes |
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 105% | 100% | 75% | 50% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 489 AH | 4.89 A |
| @ 72 Hour Rate | 476 AH | 6.61 A |
| @ 50 Hour Rate | 459 AH | 9.18 A |
| @ 20 Hour Rate | 425 AH | 21.25 A |
| @ 15 Hour Rate | 400 AH | 26.63 A |
| @ 10 Hour Rate | 383 AH | 38.25 A |
| @ 8 Hour Rate | 366 AH | 45.69 A |
| @ 5 Hour Rate | 340 AH | 68.0 A |
| @ 1 Hour Rate | 200 AH | 199.75 A |
| Ampere hour capacity ratings based on specific gravity of 1.280 at 27°C (80°F). Reduce capacities 5% for specific gravity of 1.265 and 10% for 1.250. |
||
