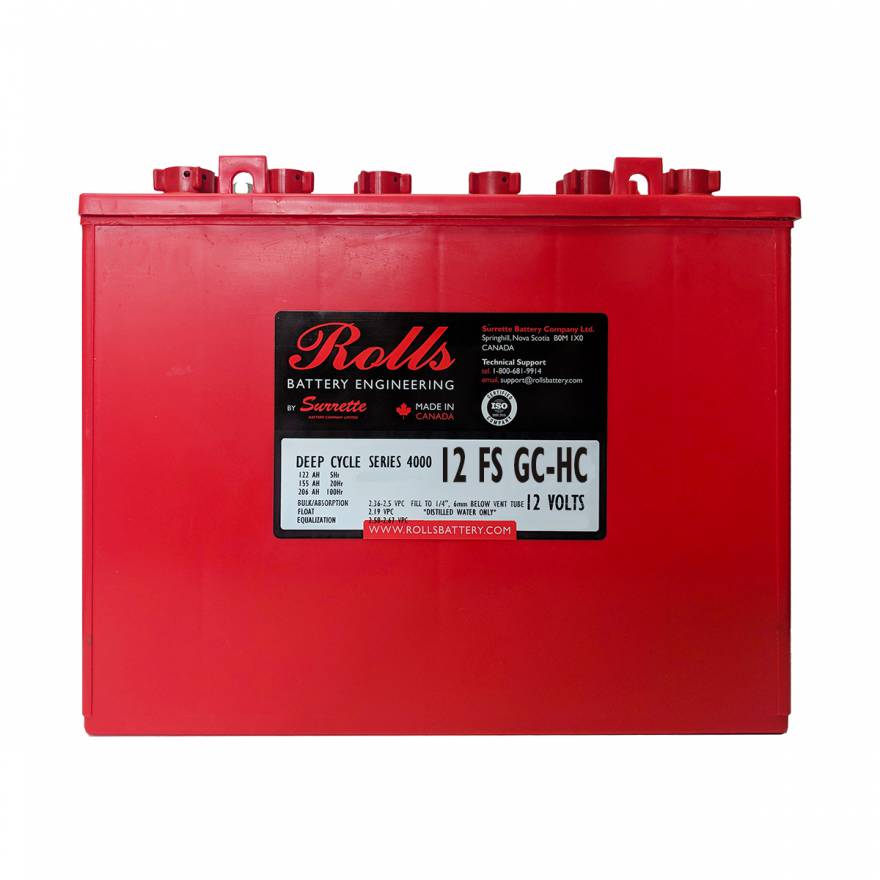

Rolls 12 FS GC-HC
Rolls is a Canadian Brand.
Full Product Spec Sheet: Click Here
| Specifications | |||
|---|---|---|---|
| Weight | 37.5 kg | 82.5 lbs | |
| Length | 333 mm | 13.13“ | |
| Width | 182 mm | 7.17“ | |
| Height Incl. Term. | 274 mm | 10.8“ | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Electrolyte Reserve | 38 mm | 1.5“ | |
|---|---|---|---|
| Container | Polypropylene | ||
| Cover | Polypropylene | ||
| Handles | Top Molded Strap Brackets | ||
|
|||
| Series | FS | Warranty | 1 Year |
|---|---|---|---|
| Volts | 12 | Design | GC12 |
| Cells | 6 | Plates/Cell | 11 |

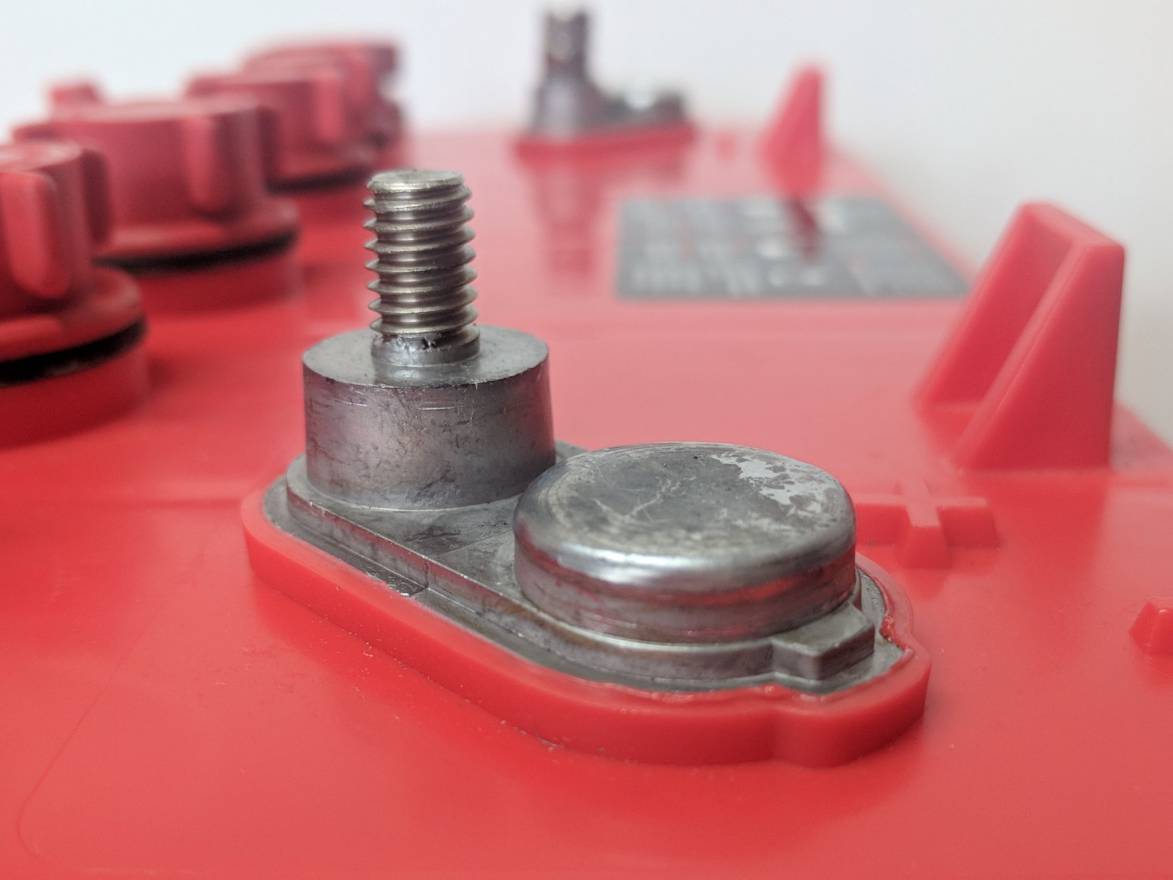

| Terminal Type | UTL | ||
| Included Hardware | Stainless Steel K-Lock Nut | ||
| Size & Thread | 5/16″-18 | ||
| Charge | |
|---|---|
| Charge Voltage Range | 14.7-15 V/cell @ 25°C (77°F) |
| Recommended Charge Current | 15 A |
| Maximum Charge Current | 25 A |
| Self-Discharge Rate | 5%-10% per month at 25°C (77°F) |
| Capacity | |
|---|---|
| Cold Crank Amps (CCA) 0°F / -18°C | 563 |
| Marine Crank Amps (MCA) 32°F / 0°C | 703 |
| Reserve Capacity (RC @ 25A) | 280 Minutes |
| Reserve Capacity (RC @ 56A) | 100 Minutes |
| Reserve Capacity (RC @ 75A) | 69 Minutes |
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 105% | 100% | 75% | 50% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 206 AH | 2.06 A |
| @ 72 Hour Rate | 195 AH | 2.71 A |
| @ 50 Hour Rate | 184 AH | 3.69 A |
| @ 20 Hour Rate | 155 AH | 7.75 A |
| @ 15 Hour Rate | 147 AH | 9.82 A |
| @ 10 Hour Rate | 136 AH | 13.64 A |
| @ 8 Hour Rate | 133 AH | 16.66 A |
| @ 5 Hour Rate | 122 AH | 24.49 A |
| @ 1 Hour Rate | 62 AH | 62 A |
| Ampere hour capacity ratings based on specific gravity of 1.280 at 27°C (80°F). Reduce capacities 5% for specific gravity of 1.265 and 10% for 1.250. |
||
